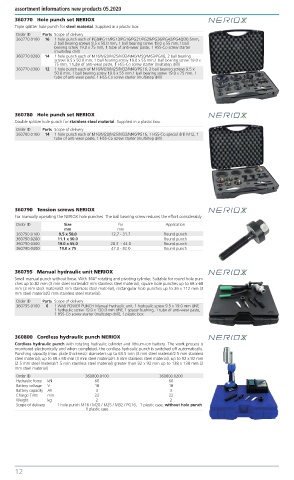

assortment informations new products 05.2020
      360770   Hole punch set NERIOX
      Triple splitter hole punch for steel material. Supplied in a plastic box
      Order ID  Parts Scope of delivery
      360770.0100  16  1 hole punch each of PG9/PG11/PG13/PG16/PG21/PG29/PG36/PG42/PG48/30.5mm,
                   2 ball bearing screws 9.5 x 50.0 mm, 1 ball bearing screw 19.0 x 55 mm,1 ball
                   bearing screw 19.0 x 75 mm, 1 tube of anti-wear paste, 1 HSS-Co screw starter
                   (multistep drill)
      360770.0200  14  1 hole punch each of M16/M20/M25/M32/M40/M50/M63/PG16, 2 ball bearing
                   screws 9.5 x 50.0 mm, 1 ball bearing screw 19.0 x 55 mm,1 ball bearing screw 19.0 x
                   75 mm, 1 tube of anti-wear paste, 1 HSS-Co screw starter (multistep drill)
      360770.0300  12  1 hole punch each of M16/M20/M25/M32/M40/PG16, 2 ball bearing screws 9.5 x
                   50.0 mm, 1 ball bearing screw 19.0 x 55 mm,1 ball bearing screw 19.0 x 75 mm, 1
                   tube of anti-wear paste, 1 HSS-Co screw starter (multistep drill)




      360780   Hole punch set NERIOX
      Double splitter hole punch for stainless steel material. Supplied in a plastic box.
      Order ID  Parts Scope of delivery
      360780.0100  14  1 hole punch each of M16/M20/M25/M32/M40/PG16, 1 HSS-Co special drill M12, 1
                   tube of anti-wear paste, 1 HSS-Co screw starter (multistep drill)












      360790   Tension screws NERIOX
      For manually operating the NERIOX hole punches. The ball bearing screw reduces the effort considerably.
      Order ID        Size             for            Application
                      mm               mm
      360790.0100   9,5 x 50.0       12.7 - 31.7      Round punch
      360790.0200   11.1 x 50.0                       Round punch
      360790.0300   19.0 x 55.0      28.3  - 44.0     Round punch
      360790.0400   19.0 x 75        47.0 - 82.0      Round punch


      360795   Manual hydraulic unit NERIOX
      Small manual punch without hose. With 360° rotating and pivoting cylinder. Suitable for round hole pun-
      ches up to 82 mm (3 mm steel material/2 mm stainless steel material), square hole punches up to 68 x 68
      mm (3 mm steel material/2 mm stainless steel material), rectangular hole punches up to 36 x 112 mm (3
      mm steel material/2 mm stainless steel material).
      Order ID  Parts Scope of delivery
      360795.0100  6  1 WAB POWER PUNCH Manual hydraulic unit, 1 hydraulic screw 9.5 x 19.0 mm UNF,
                   1 hydraulic screw 19.0 x 130.0 mm UNF, 1 spacer bushing, 1 tube of anti-wear paste,
                   1 HSS-Co screw starter (multistep drill), 1 plastic box


      360800   Cordless hydraulic punch NERIOX
      Cordless hydraulic punch with rotating hydraulic cylinder and lithium-ion battery. The work process is
      monitored electronically and when completed, the cordless hydraulic punch is switched off automatically.
      Punching capacity (max. plate thickness): diameters up to 63.5 mm (3 mm steel material/2.5 mm stainless
      steel material), up to 68 x 68 mm (3 mm steel material/1.5 mm stainless steel material), up to 92 x 92 mm
      (2.5 mm steel material/1.5 mm stainless steel material) greater than 92 x 92 mm up to 138 x 138 mm (2
      mm steel material)
      Order ID               360800.0100            360800.0200
      Hydraulic force  kN       60                     60
      Battery voltage  V        18                     18
      Battery capacity  Ah      3                       3
      Charge Time  min          22                     22
      Weight    kg              2                       2
      Scope of delivery  1 hole punch M16 / M20 / M25 / M32 / PG16,  1 plastic case, without hole punch
                             1 plastic case
